The Johnson Counter: Mastering the 'Twisted Ring' for Efficient Digital Design

Ever wondered why some digital systems seem to achieve more with less? In the world of sequential logic, we often find ourselves choosing between the raw efficiency of a binary counter and the simplicity of a ring counter. But there is a middle ground—a “sweet spot” that offers the best of both worlds.

The Johnson counter, often called the “twisted ring counter” or “switch-tail counter,” is one of those elegant designs that makes you appreciate the cleverness of early computer engineering. By adding a single logical inversion to a standard shift register, we double the number of available states and create a sequence that is remarkably easy to decode.

The Architecture of the “Twist”

At its core, a Johnson counter is a synchronous shift register where the inverted output of the last stage is fed back into the input of the first stage. If you’re familiar with a standard ring counter, you know that it typically circulates a single “1” through $n$ flip-flops, giving you $n$ states.

The Johnson counter changes the game. By feeding back $\overline{Q}$ instead of $Q$, we create a sequence where “1”s fill up the register and then “0”s fill it back up. This simple modification results in $2n$ states using only $n$ flip-flops.

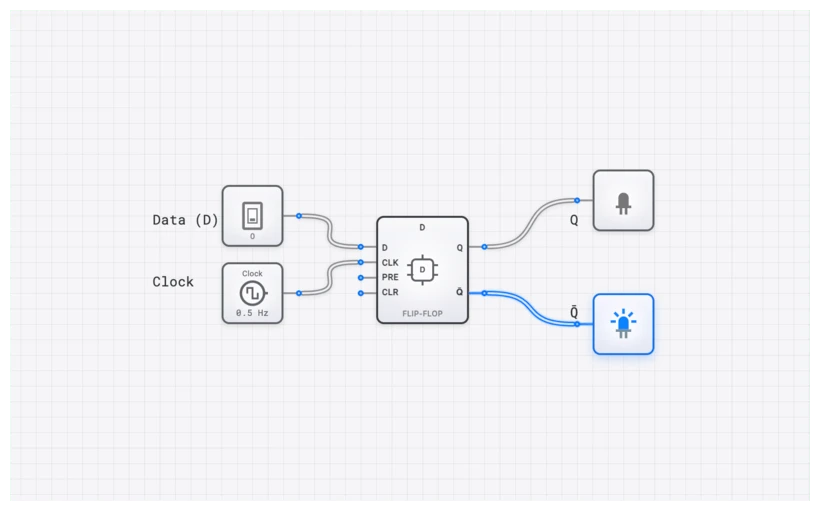

In digisim.io, you can build this using a series of D_FLIP_FLOP components. The feedback loop is the critical part: the $\overline{Q}$ output of the final D_FLIP_FLOP must connect back to the $D$ input of the first D_FLIP_FLOP in the chain. This “twist” in the feedback path is what gives the counter its name and its unique properties.

Explore the D_FLIP_FLOP Component

Technical Specification: The 4-Bit Sequence

Let’s look at the state sequence for a 4-bit Johnson counter. We’ll assume the register starts cleared at 0000. In this configuration, we have four stages ($Q_3, Q_2, Q_1, Q_0$), which provides $2 \times 4 = 8$ distinct states.

The characteristic “walking” pattern is obvious here. The bits shift right on every clock edge, but the new bit entering $Q_3$ is always the inverse of what was just in $Q_0$. This means it takes four clock cycles to fill the register with ones, and another four to empty it back to zeros.

The Boolean Foundation

The logic governing the feedback is straightforward. For an $n$-bit counter where $Q_0$ is the last stage and $Q_{n-1}$ is the first:

The decoding logic is where the Johnson counter truly shines. Unlike a binary counter, which requires an $n$-input AND gate to decode a specific state (for example, a 4-input gate for a 4-bit counter), a Johnson counter only ever requires a 2-input AND gate to decode any of its $2n$ states.

This is because each state is uniquely identified by the transition between a “1” and a “0” (or vice versa) at a specific point in the register.

Example: Decoding State 3 ($1110$) To detect this state, we look for the point where the “1”s have filled up to $Q_1$, but $Q_0$ is still “0”.

This reduction in “glue logic” is a massive advantage when you’re building hardware on a tight budget of gates or silicon area.

Common Pitfall: Invalid States and Self-Correction

A common source of frustration when building Johnson counters in hardware is erratic behavior caused by unused states.

A 4-bit register has $2^4 = 16$ possible states. A 4-bit Johnson counter only uses 8 of them. What happens to the other 8? If your circuit powers up into an invalid state like $0101$ (alternating bits), the standard feedback loop will just cycle through other invalid states ($1010 \rightarrow 0101$) and never join the main sequence. This is a classic “lock-up” condition.

In a professional design, we add self-correcting logic. Instead of the simple feedback $D_3 = \overline{Q}_0$, we modify it to:

This expression means: only shift a “1” into the first stage if the last two stages are both “0.” In the valid sequence, this condition is equivalent to the original feedback. But in an invalid state like $0101$, the modified feedback prevents the counter from cycling through a closed loop of invalid states. Instead, it forces the register toward $0000$, after which the counter enters the correct sequence and stays there.

The key insight is that self-correction adds only one extra gate but guarantees reliable startup regardless of the initial register contents, an essential requirement for any production design.

Visualizing with the Oscilloscope

One of the most beautiful aspects of the Johnson counter is the phase relationship between its outputs. Each flip-flop output is a square wave with a frequency of $f / 2n$, where $f$ is the clock frequency. However, each successive output is shifted by exactly one clock period.

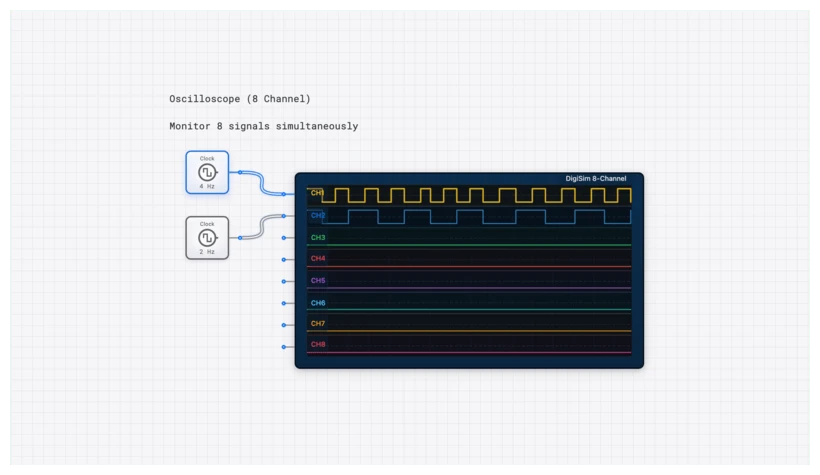

If you place an OSCILLOSCOPE_8CH in digisim.io across the $Q$ outputs of a 4-bit Johnson counter, you’ll see a perfect “staircase” of overlapping pulses. Each output has a 50% duty cycle. This is a massive advantage over the narrow, spike-like pulses produced by a standard ring counter, especially when driving power electronics or LEDs.

Using the OSCILLOSCOPE_8CH is critical for verifying the timing. You can see the propagation delay ($t_{pd}$) as the signal moves from one D_FLIP_FLOP to the next. In a high-speed system, these nanoseconds matter.

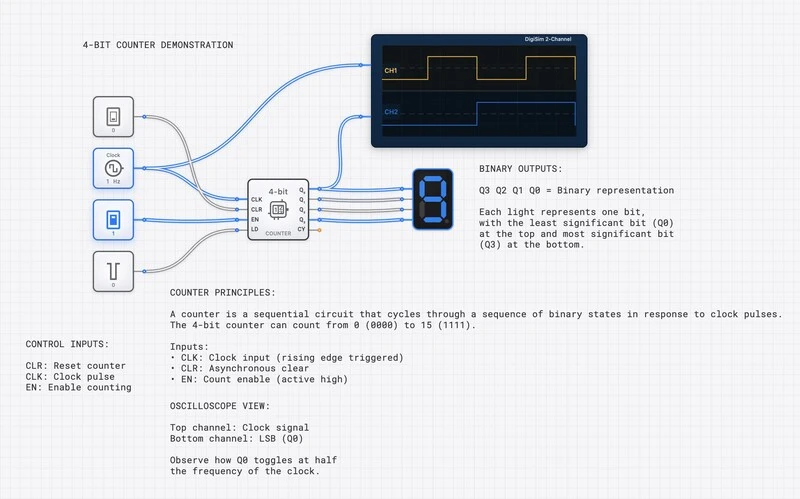

Open Johnson Counter Building Block

Real-World Applications

Why do we bother with this “twisted” logic in the age of cheap microcontrollers? Because in high-speed digital design and power electronics, hardware-level timing is everything.

1. The CD4017 Decade Counter: This is perhaps the most famous implementation of a Johnson counter. Internally, it uses a 5-bit Johnson counter to create 10 decoded outputs. It’s the heart of thousands of “LED chaser” circuits and simple timers.
2. Multi-Phase Clock Generation: If you need to trigger four different events in a specific sequence with non-overlapping pulses, a Johnson counter is the most stable way to do it. It provides inherent glitch-free decoding.
3. Stepper Motor Control: Stepper motors require specific sequences of energized coils (e.g., Phase A, then Phase B, then Phase A’, then Phase B’). A Johnson counter can generate these power phases directly with minimal glue logic, ensuring the motor turns smoothly without complex software overhead.

Building it Yourself: A digisim.io Walkthrough

To master this, I recommend you head over to the editor and follow these steps. I’ve chosen the D_FLIP_FLOP for this because its behavior is predictable and easy to chain.

1. Layout: Place four D_FLIP_FLOP components in a row.
2. Clocking: Connect a single CLOCK source to the clock input of all four flip-flops. Remember, this is a synchronous counter, so they must all trigger at the exact same time.
3. The Chain: Connect $Q_3$ to $D_2$, $Q_2$ to $D_1$, and $Q_1$ to $D_0$.
4. The Twist: Place a NOT gate. Connect $Q_0$ to the input of the NOT gate, and the output of the NOT gate back to $D_3$. This completes the “switch-tail” feedback.
5. Output: Attach an OUTPUT_LIGHT to each $Q$ output to see the “walking” pattern.
6. Analysis: Add an OSCILLOSCOPE to $Q_3$ and $Q_0$. You’ll notice that $Q_0$ is exactly 4 clock cycles behind $Q_3$.

Curriculum Integration

If you are following our structured learning path on digisim.io, the Johnson counter represents a pivotal moment where we move from simple data storage to complex state machines. It bridges the gap between basic registers and the Control Units used in CPUs.

• Introduction to D_FLIP_FLOP behavior.
• Shift Register fundamentals.
• The Ring Counter vs. The Johnson Counter (This Article).
• Designing Finite State Machines (FSMs).

Final Thoughts

The Johnson counter is a testament to the idea that a small change in topology can lead to a significant increase in capability. It’s more efficient than a ring counter and easier to decode than a binary counter. Whether you’re building a simple LED flasher or a complex multi-phase power controller, the “twisted ring” is a tool you want in your engineering arsenal.

I’ve seen students spend hours trying to decode a binary counter for a simple sequence, only to realize that a Johnson counter could have done it with two gates and zero headaches. Don’t over-engineer when a clever feedback loop can do the work for you.
