The JK Flip-Flop: Mastering the Universal Building Block of Digital Memory

How does a simple circuit remember a single bit of information? And more profoundly, how can it be instructed not just to store a value, but to intelligently change it based on new commands? This question sits at the very heart of sequential logic and computation itself. While simple latches provide a rudimentary form of memory, their limitations quickly become apparent the moment you try to build something as complex as a CPU. To build the state machines, counters, and processors that power our world, we need a more versatile and robust tool.

Enter the JK_FLIP_FLOP. It is not merely another component; it is arguably the most versatile and fundamental 1-bit memory element ever conceived. Its design elegantly solves the critical flaws of its predecessors and provides a complete set of operations that make it a "universal" building block for digital design. If you can master the JK_FLIP_FLOP, you've essentially unlocked the secret to building almost any sequential circuit on digisim.io.

From Ambiguity to Universality: The Evolution of the JK_FLIP_FLOP

To appreciate the genius of the JK_FLIP_FLOP, we have to look back at the SR_LATCH. The SR (Set-Reset) Latch is effective for basic storage, but it has a "forbidden" or "invalid" state. This occurs when both Set and Reset inputs are asserted simultaneously ($S=1, R=1$). In a physical circuit, this condition creates an unpredictable, unstable output—a cardinal sin in digital design where determinism is everything. I've seen students spend hours debugging "ghost" signals in their circuits, only to realize they accidentally triggered an SR invalid state.

The JK_FLIP_FLOP is a clocked, synchronous device that directly confronts this ambiguity. It retains the familiar Set and Reset functions but redefines the problematic $1,1$ input condition into something incredibly useful: the toggle state.

This single innovation transforms it from a simple memory cell into a powerful tool for counting, frequency division, and state machine implementation. Because it operates on the edge of a clock signal, state changes happen at precise, predictable moments. It brings order to the chaotic flow of data.

Technical Specification: The Four Modes of Operation

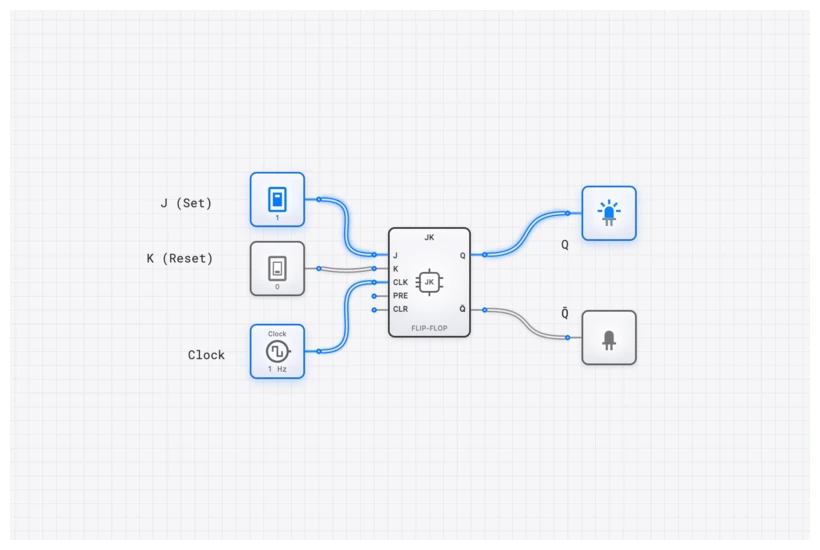

The standard JK_FLIP_FLOP has two primary data inputs, J (analogous to Set) and K (analogous to Reset), a CLOCK input, and the complementary outputs Q and Q'. Its behavior is defined by the state of J and K on the rising edge of the clock pulse.

In digisim.io, the JK_FLIP_FLOP is edge-triggered. This means it ignores the inputs until the exact moment the CLOCK signal transitions from Low to High. This is a critical distinction from a latch, which is level-sensitive.

The "Hold" state makes it a memory device. "Set" and "Reset" allow for direct control. But the "Toggle" state is its signature feature. When both J and K are High, the output flips its current state. If it was 0, it becomes 1. If it was 1, it becomes 0. This is the foundation for every binary counter ever built.

The Logic Within: The Characteristic Equation

The behavior of the JK_FLIP_FLOP is perfectly captured by its characteristic equation. This equation describes the next state of the output, $Q_{next}$, as a function of its current state, $Q$, and the inputs, $J$ and $K$.

$$Q_{next} = (J \cdot \overline{Q}) + (\overline{K} \cdot Q)$$

Let's dissect this expression to understand why it works so well:

1. $(J \cdot \overline{Q})$: This term governs the Set action. The output will be set to 1 if $J=1$ AND the current state $Q$ is 0 (meaning $\overline{Q}=1$). The feedback from $\overline{Q}$ ensures that if the flip-flop is already set ($Q=1$), this term becomes zero, preventing any conflict.
2. $(\overline{K} \cdot Q)$: This term governs the Hold and Reset actions. The output will remain 1 if $K=0$ (meaning $\overline{K}=1$) AND the current state $Q$ is 1. If $K$ becomes 1, this term becomes zero, allowing the flip-flop to be reset.

When $J=1$ and $K=1$, the equation simplifies beautifully: $$Q_{next} = (1 \cdot \overline{Q}) + (0 \cdot Q) = \overline{Q}$$

The next state is the inverse of the current state. This is the mathematical definition of the toggle. It's elegant, deterministic, and incredibly powerful.

The Gotcha: Timing, Race-Around, and Metastability

A JK_FLIP_FLOP is a powerful tool, but it's not magic. It's governed by strict timing rules. If you ignore them, your simulation might look fine, but your real-world hardware will fail.

Setup and Hold Times

The J and K inputs cannot change at the exact moment the clock ticks. They must be stable for a brief period before the clock edge ($t_{setup}$) and remain stable for a period after the edge ($t_{hold}$). If you violate these timings, the flip-flop can enter a metastable state—an unstable, intermediate voltage level that is neither a clear 0 nor a 1. Eventually, it will collapse to a random state, but in that window of uncertainty, your logic gates might interpret the signal differently, leading to catastrophic system failures.

The Race-Around Condition

This is a classic issue in older, level-triggered JK latch designs. If the clock pulse is "High" for too long, the output can toggle, and that new output can race back to the inputs (via the internal feedback loops) and cause another toggle, all within the same clock pulse. The output ends up oscillating wildly.

Modern components on digisim.io, like the JK_FLIP_FLOP, are edge-triggered. They only respond to the instantaneous transition of the clock. This completely eliminates the race-around condition. However, when building complex systems, you should still use an OSCILLOSCOPE to verify that your clock pulses are clean and your propagation delays aren't stacking up in a way that creates "glitches."

Building and Verifying on digisim.io

Theoretical knowledge becomes practical skill only through hands-on application. Let's build a circuit to prove the JK_FLIP_FLOP's most famous behavior: frequency division.

1. Open the Editor: Navigate to the digisim.io circuit editor.
2. Place Components: Drag and drop a JK_FLIP_FLOP, a CLOCK, two CONSTANT sources, and an OSCILLOSCOPE_8CH.
3. Configure for Toggle Mode: Click on both CONSTANT components and set their values to 1 (High). Connect one to the J input and the other to the K input of the JK_FLIP_FLOP. This puts the flip-flop into permanent toggle mode.
4. Connect Clock and Output: Wire the CLOCK component to the CLK input of the flip-flop. Wire the Q output of the flip-flop to Channel 2 of the OSCILLOSCOPE_8CH. Connect the raw CLOCK signal to Channel 1.
5. Run and Observe: Start the simulation.

Verification with the OSCILLOSCOPE_8CH

The OSCILLOSCOPE_8CH is your best friend for debugging sequential logic. By comparing the clock and the output, you'll see something remarkable: The waveform on Channel 2 (the Q output) will have a frequency that is exactly half that of the waveform on Channel 1 (the clock).

For every two clock ticks, the output completes only one full cycle. You have just built a divide-by-2 circuit. If you chain another JK_FLIP_FLOP to the output of the first, you'll get a divide-by-4 circuit. This is exactly how digital watches and timers work—they take a high-frequency crystal oscillator and "divide" it down until they have a 1Hz signal for the seconds hand.

Real-World Applications: Where History Was Made

The JK_FLIP_FLOP isn't just a textbook component; it was the workhorse of the digital revolution.

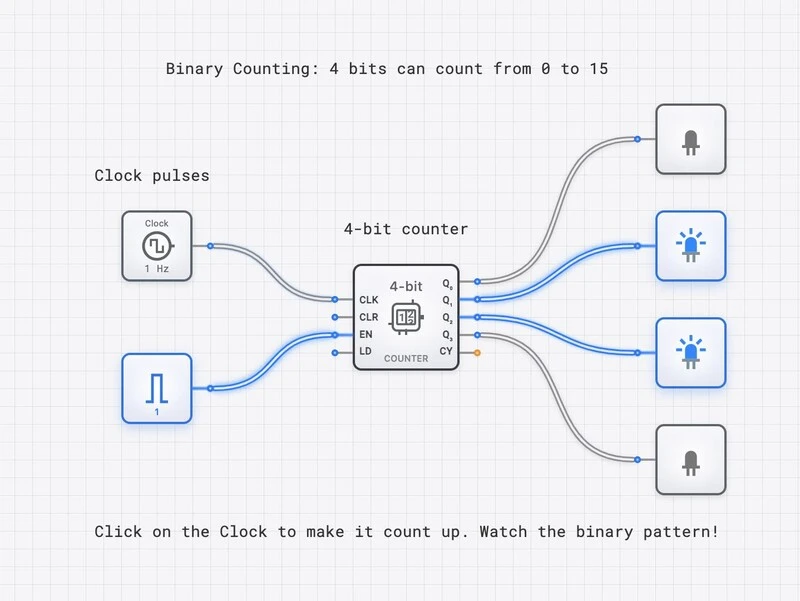

1. Asynchronous Counters (Ripple Counters)

The iconic 7493 4-bit binary counter, a staple of the TTL logic family used in everything from early calculators to industrial controllers, was built by chaining JK_FLIP_FLOPs. By connecting the Q output of one flip-flop (in toggle mode) to the clock input of the next, you create a "ripple" effect. These were used everywhere, including early arcade games like Pong to manage scoring and screen refresh timing.

2. Finite State Machine (FSM) Control Logic

Before microcode became the standard, the control units of early microprocessors like the Zilog Z80 and Intel 8080 were implemented as complex, hardwired finite state machines. The JK_FLIP_FLOP was the ideal choice for this.

Why? Because its excitation table contains "don't care" conditions. When designing the combinational logic to drive the flip-flops, these "don't cares" allow for significant Boolean simplification. In the 1970s, when every gate on a silicon chip was expensive, using JK_FLIP_FLOPs instead of D_FLIP_FLOPs could save enough space to fit an extra register or instruction on the chip.

The "Universal" Flip-Flop: Converting to Other Types

One of the reasons I call the JK_FLIP_FLOP "universal" is that it can easily mimic any other type of flip-flop. This is a common exam question, but it's also a practical skill when you're limited by the components available in a specific logic family.

• To make a D_FLIP_FLOP: Connect the D input directly to J, and connect the inverse of D (using a NOT gate) to K. Now, the flip-flop will only ever be in "Set" or "Reset" mode, effectively latching the D value on the clock edge.
• To make a T_FLIP_FLOP: Simply tie J and K together. The single input now acts as a "Toggle Enable." If the input is High, it toggles; if Low, it holds.

Integrating with the digisim.io Curriculum

Mastering the JK_FLIP_FLOP is a major milestone. It’s the bridge between simple "memory" and "computation." This concept ties directly into our structured learning path:

• Prerequisites: This deep dive builds upon the foundational knowledge of latches and clocking covered in Lessons 41-44 (SR_LATCH, D_LATCH, D_FLIP_FLOP).
• Core Concept: The JK_FLIP_FLOP itself is the star of Lesson 45. If you've followed along here, you're already ahead of the curve.
• Future Applications: The principles you've learned here are absolutely essential for Lessons 55-62, where you will use these components to construct multi-bit COUNTERs, SHIFT_REGISTERs, and eventually, the control logic for your own CPU.

Your Turn: Build, Test, and Master

Reading about logic is one thing; seeing the signals propagate in real-time is another. The subtle interplay of inputs, clock edges, and outputs only truly "clicks" when you are the one pulling the switches.

I challenge you to take these three steps in the digisim.io editor today:

1. Build the Universal Component: Using a JK_FLIP_FLOP and a NOT gate, build a functional D_FLIP_FLOP. Test it with an INPUT_SWITCH to confirm it correctly latches the data only on the clock edge.
2. Construct a Ripple Counter: Chain three JK_FLIP_FLOPs together to build a 3-bit asynchronous counter. Use the OSCILLOSCOPE_8CH to view the CLOCK and the three Q outputs simultaneously. You should see the binary count (000, 001, 010...) represented in the waveforms.
3. The Modulo Challenge: Modify your 3-bit counter to create a "modulo-6" counter (it should count from 0 to 5 and then immediately reset to 0). Hint: You'll need an AND gate to detect when the outputs reach '110' (binary 6) and feed that signal into the reset logic.

The JK_FLIP_FLOP represents a pivotal moment in digital design—a point where problems of ambiguity were solved with elegant logic. By mastering it, you aren't just learning about a historical component; you are acquiring a fundamental tool for designing any system that needs to remember, count, or sequence.

The simulator is open, the clock is ticking, and the gates are waiting. What will you build?
