Mastering the 4-Bit Register: The Building Block of CPU Memory

Ever wonder how your computer actually "holds" a number? When you're adding two values in a CPU, those numbers don't just float in the ether; they are physically locked into place by a fundamental circuit called a register. If the logic gate is the atom of computing, the register is the first molecule of memory.

A register is essentially a group of flip-flops—usually the D_FLIP_FLOP variety—working in perfect synchronization to store multiple bits of data simultaneously. In this guide, we’re focusing on the 4-bit register, the classic "nibble" storage unit that serves as the backbone for everything from program counters to accumulator registers in early microprocessors like the MOS 6502 or the Intel 8008.

What Exactly is a Register?

In the hierarchy of digital systems, a register sits right above the individual latch. While a single D_LATCH or D_FLIP_FLOP can remember one bit, a register scales this up to handle words of data. A 4-bit register captures four bits of data ($D_3, D_2, D_1, D_0$) at the exact moment a CLOCK signal transitions from LOW to HIGH.

The beauty of the register is its parallel nature. Unlike serial communication where bits trickle in one by one, a register grabs the entire 4-bit value at once. It’s the difference between a single person walking through a door and a row of four people stepping through a gate in unison. In the context of digisim.io, the REGISTER component simplifies this by housing the internal wiring for you, but understanding the discrete logic underneath is what separates a hobbyist from an engineer.

Technical Specification & Truth Table

The behavior of a 4-bit register is governed by the edge-triggered nature of its internal components. In digisim.io, we typically use the D_FLIP_FLOP because it prevents the "transparency" issues found in basic latches. A latch is level-sensitive, meaning the output can change as long as the enable signal is high. A flip-flop, however, only looks at the input during the "shutter speed" of the clock edge.

Here is the truth table for a single bit within the register. Multiply this by four, and you have your 4-bit storage:

In this table, $X$ represents a "don't care" state, and $\uparrow$ represents the rising edge of the CLOCK. Notice that the output only changes when the clock transitions from 0 to 1. At all other times, the register is effectively "deaf" to the data bus.

The Mathematical Foundation

The logic of a standard D_FLIP_FLOP is the simplest in the sequential world. The characteristic equation is:

$$Q_{next} = D$$

However, a professional-grade register rarely just "loads" on every single clock tick. If it did, the data would be overwritten constantly. We usually want a "Load Enable" feature. When we add a MULTIPLEXER to the input of each flip-flop, the equation evolves into a conditional storage formula:

$$Q_{next} = (Load \cdot D) + (\overline{Load} \cdot Q)$$

This formula tells us that if $Load$ is 1, we take the new data $D$. If $Load$ is 0, we feed the current output $Q$ back into the input, effectively "holding" the value regardless of what the clock is doing. This feedback loop is the secret sauce of stable digital memory.

"The Gotcha": Why Your Register Might Be Glitching

I’ve seen countless students build a register and wonder why the data looks like "garbage" on the output. The culprit is almost always timing violations—specifically Setup and Hold Times.

In a simulator like digisim.io, propagation delay is modeled to reflect real-world physics. If your data input $D$ changes at the exact same picosecond as the CLOCK rising edge, the flip-flop enters a state of "metastability." It doesn't know if it should be a 0 or a 1.

The Rule: Data must be stable for a duration of $t_{setup}$ before the clock edge and remain stable for $t_{hold}$ after the edge. If you’re toggling an INPUT_SWITCH manually while a high-speed CLOCK is running, you’re bound to hit a race condition. Always ensure your data is "settled" on the bus before you pulse the clock.

Interactive Demo: Building the Foundation

Before we get into complex CPU registers, you need to see how a single bit behaves under pressure. I recommend starting with the basic edge-triggered D-type circuit to understand the "shutter" effect of the clock. This isolates the timing so you can see exactly when the bit is captured.

Why this circuit? It’s the cleanest environment to witness the transition. You can toggle the input and see that the output $Q$ only updates when you manually pulse the clock. This is the "Aha!" moment for most students: the realization that time is just another input in digital logic.

Scaling Up: The 4-Bit Register with Load Enable

Once you've mastered the single bit, it's time to build the 4-bit version. In a real system, we don't just want to store data; we want to control when it gets stored. This is where the REGISTER component or a custom array of D_FLIP_FLOP units comes in.

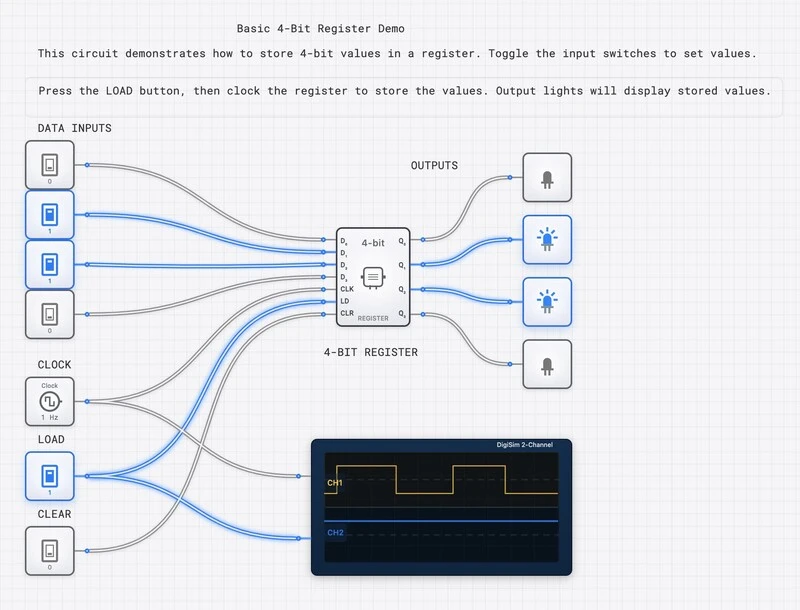

In the template below, we’ve wired four flip-flops to a common clock line. This ensures that all four bits are captured at the exact same instant, preventing "skew" where one bit updates before another. We've also included a Load Enable line using a MULTIPLEXER for each bit.

Oscilloscope Verification: Seeing the "Snapshots"

To truly understand a register, you need to stop looking at static lights and start looking at time. Use the OSCILLOSCOPE_8CH in digisim.io to monitor the CLOCK, the four inputs, and the four outputs. This is how professional engineers debug timing issues in high-speed processors.

1. Setup: Connect Channel 0 to your CLOCK.
2. Inputs: Connect Channels 1-4 to your data inputs ($D_3$ through $D_0$).
3. Outputs: Connect Channels 5-8 to your register outputs ($Q_3$ through $Q_0$).
4. Observe: Run the simulation and change the input values rapidly.

Notice how the input waveforms (Channels 1-4) look chaotic as you toggle switches. However, look at the output waveforms (Channels 5-8). They remain perfectly flat until the exact moment the clock signal (Channel 0) spikes. This visual representation proves that the register is a "sampling" device. It ignores the noise of the data bus and only listens to the values at the precise moment of the clock's command.

Real-World Applications

You cannot build a computer without registers. They are the "scratchpad" of the processor, sitting at the very top of the memory hierarchy—faster than Cache, faster than RAM, and certainly faster than your SSD.

1. The Intel 8086 Accumulator (AX)

This is a 16-bit register (essentially four 4-bit registers chained together). When you perform an instruction like ADD AX, BX, the ALU calculates the sum, but that sum needs a place to live. The result is latched into the AX register at the end of the execution cycle. Without that register, the result of the addition would vanish the moment the ALU inputs changed.

2. Instruction Registers (IR)

In almost every CPU architecture, the INSTRUCTION_REGISTER holds the current opcode being executed. Imagine the CPU fetching an instruction from RAM. RAM is slow. The CPU needs to "hold" that instruction steady so the CONTROL_UNIT can decode it and figure out which gates to open. The IR acts as the anchor, keeping the instruction stable while the rest of the system moves.

3. Pipeline Stages

Modern processors use registers to separate different stages of execution (Fetch, Decode, Execute). These are called "Pipeline Registers." They act like the locks in a canal, allowing the CPU to work on multiple instructions at once without them bleeding into each other. Each clock cycle, the instruction moves from one register "lock" to the next.

Related Lessons in the Curriculum

If you're following our 70-lesson track, the 4-bit register is a pivotal turning point where we move from "Combinational Logic" (where outputs change instantly) to "Sequential Logic" (where outputs depend on history).

• Lesson 41: Introduction to Latches vs. Flip-Flops
• Lesson 43: The D_FLIP_FLOP and Edge-Triggering
• Lesson 47: Building Parallel-In Parallel-Out (PIPO) Registers
• Lesson 65: Designing the ACCUMULATOR for a 4-bit CPU

Your Next Step: From Storage to Movement

Now that you've built a circuit that can hold a nibble, the next logical question is: how do we move that data around? In a CPU, data doesn't just sit in one register; it flows from the ALU to the ACCUMULATOR, and then out to RAM.

The problem is that you can't just wire two register outputs together—they'll fight each other, causing a short circuit. To solve this, your next step is to explore the TRI_STATE_BUFFER_8BIT. This component allows a register to "disconnect" itself from the bus when it's not its turn to talk.

Try adding a TRI_STATE_BUFFER to your register output in digisim.io. It’s the first step toward building a shared DATA_BUS_8BIT and, eventually, your very own functional CPU.
