Mastering Sequential Logic: The D Latch Explained and Simulated

TL;DR: A D latch stores one bit and follows $Q_{next}=(E D)+(\overline{E}Q)$. When Enable is HIGH, Q follows D after propagation delay; when Enable is LOW, Q holds. Gating D and $\overline D$ prevents the ordinary data input from asserting set and reset together, but a physical latch still has setup/hold requirements and can become metastable near its closing edge.

Sequential logic often starts with the SR latch. Its two independent controls permit an invalid asserted combination. A gated D latch derives those controls from one data input and its complement, removing that combination during normal operation and adding an explicit time at which new data may enter.

Deconstructing the D_LATCH: What It Is and Why It Matters

At its core, a D_LATCH is a level-sensitive memory element derived from an SR structure. Under the Boolean model, its input gating keeps Set and Reset mutually exclusive. It sits between combinational logic and edge-triggered storage: gates depend on current inputs, while the latch can retain a previous value.

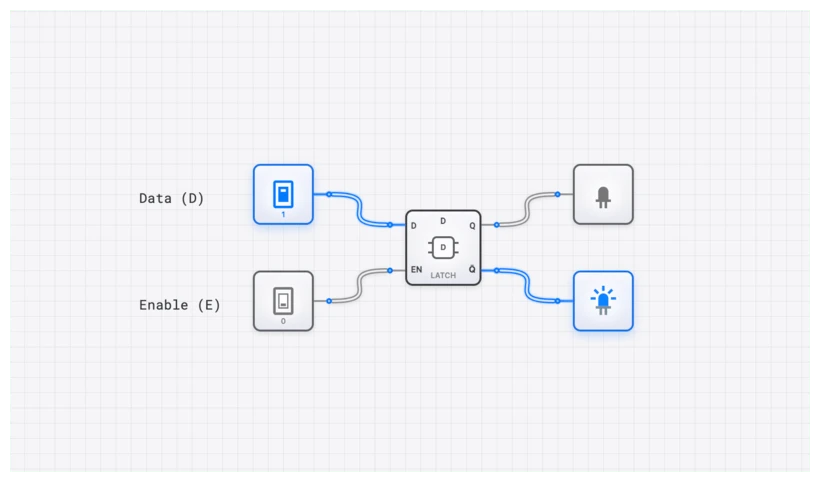

The component features two primary inputs and two outputs:

• D (Data): A single input that determines what value (0 or 1) the latch should store.
• E (Enable): Often labeled ‘E’ or ‘G’ (Gate), this input acts as a control switch. It dictates when the latch pays attention to the D input.
• Q: The primary output, which reflects the stored data.
• $\overline{Q}$: The complemented (inverted) output of the stored data.

The behavior is defined by two distinct modes of operation based on the state of the Enable signal. When $E = 1$, the latch is in Transparent Mode. The output Q simply follows the state of the D input. If D changes, Q changes with it almost instantaneously. When $E = 0$, the latch enters Latched Mode. The Q output ignores the D input completely and holds onto the last value it had just before E transitioned from 1 to 0.

Explore D_LATCH Behavior

Technical Specification and Truth Table

To master the D_LATCH, you have to look past the symbol and understand the logic governing its state transitions. The truth table clearly defines the next state of Q ($Q_{next}$) based on the current inputs. Note that when E is 0, the D input is irrelevant, denoted by an ‘X’ for “Don’t Care.”

The Characteristic Equation

We can express this behavior mathematically with the D_LATCH characteristic equation. This equation is the formal definition of the circuit’s operation and is essential for Boolean simplification in larger sequential designs.

Let’s derive this from first principles. The D_LATCH is internally a gated SR Latch where:

• $S = E \cdot D$
• $R = E \cdot \overline{D}$

The SR Latch characteristic equation states $Q_{next} = S + \overline{R} \cdot Q$. Substituting:

Applying De Morgan’s Law: $\overline{(E \cdot \overline{D})} = \overline{E} + D$. So:

Since $(E \cdot D)$ already covers the case where both D and Q are relevant, the $(D \cdot Q)$ term is absorbed by Boolean simplification (consensus theorem), leaving us with the clean result:

Breaking this into its logical components:

• The term $E \cdot D$ represents the transparency: if Enable is high, the output becomes whatever D is.
• The term $\overline{E} \cdot Q$ represents the memory: if Enable is low, the output maintains its current state $Q$.
• The equation is a multiplexer in disguise: the Enable signal selects between new data and the stored value.

The Logic Under the Hood: From SR to D

You can think of the D_LATCH as a “Gated SR_LATCH” with a clever twist. If you look at the internal gate structure, we feed the D input directly to the “Set” side and an inverted D input (via a NOT gate) to the “Reset” side. This guarantees that S and R are always opposites when the circuit is enabled.

• $S = E \cdot D$
• $R = E \cdot \overline{D}$

When $E=1$, $D=1$ produces Set and $D=0$ produces Reset. The ordinary data path therefore cannot command both simultaneously. When $E=0$, both controls deassert and the core holds. Real gates do not switch simultaneously: D and Enable transitions near closure can violate timing, so the D latch avoids the SR truth-table error without eliminating metastability.

Common Pitfall: The Peril of Transparency

The D_LATCH’s greatest strength—its transparency—is also its most significant weakness in complex, high-speed systems. This is the critical pitfall that trips up many students when they move from simple circuits to CPU design.

Because the output Q follows the input D for the entire duration that the Enable signal is high, any noise, glitches, or unintended signal changes on the D line will pass directly to the output. This is known as level-sensitive behavior.

Imagine the Enable signal is a window. When $E=1$, the window is wide open. You see everything happening outside (the D input) in real-time, including a bird flying by or a leaf falling (the “glitches”). When $E=0$, the window is instantly frosted over, displaying a snapshot of the very last thing you saw.

Why transparency is dangerous in practice: Consider a system where the output of one D_LATCH feeds through combinational logic and back into the input of the same or another latch. While the Enable is high, any change at the output immediately propagates through the logic and appears at the input, which then changes the output again. This creates a feedback path through the combinational logic that can cause:

1. Unintended multiple state changes within a single enable window.
2. Glitch propagation, where a transient spike on the data line passes through to Q and corrupts downstream circuits.
3. Timing unpredictability, where the final value latched depends on when exactly the Enable falls—a nightmare for verification.

Many synchronous designs use D flip-flops, whose externally visible capture is associated with a clock edge. Other high-performance designs deliberately use two-phase latches for time borrowing. Neither choice removes timing analysis; each defines a different set of setup, hold, transparency, and clocking constraints.

Oscilloscope Verification: Seeing the Signal

To truly understand the timing of a D_LATCH, you need to see the waveforms. In digisim.io, the OSCILLOSCOPE is your best friend for debugging these timing relationships.

When you connect an OSCILLOSCOPE to the E, D, and Q pins, you’ll notice a few critical behaviors:

1. Propagation delay ($t_{pd}$): A physical or delay-aware model shows time between D changing and Q responding during transparency. An ideal logic simulator may not model this delay.
2. The Latching Moment: Watch the Q line exactly when E drops from 1 to 0. Whatever value D had at that precise microsecond is what Q will hold, regardless of what D does afterward.
3. Glitch Capture: If you toggle D rapidly while E is high, you’ll see those pulses mirrored on Q. If you toggle D while E is low, the Q line on the OSCILLOSCOPE remains a flat, steady horizontal line.

Open Oscilloscope Demo

Real-World Applications: Beyond the Breadboard

The D_LATCH isn’t just an academic exercise; it’s a workhorse component found in the architecture of the devices you use every day.

1. CPU Pipeline Registers

Pipelines place state between stages so different instructions can occupy different stages concurrently. Depending on the clocking methodology, those boundaries may use edge-triggered flip-flops or alternating latch phases. Latch-based pipelines can borrow time across a boundary, but require careful control of transparency, non-overlap, and hold timing.

2. Address Demultiplexing (The Intel 8086 Example)

To save physical pins on integrated circuits, early microprocessors like the Intel 8085 and 8086 used a multiplexed address/data bus. For part of a machine cycle, the pins would carry a memory address; for another part, they would carry data.

Engineers used an external D_LATCH (like the famous 74LS373 Octal Transparent Latch) to “demultiplex” these signals. The processor would place the address on the bus and pulse a signal called ALE (Address Latch Enable). The D_LATCH would grab the address and hold it for the memory chips, freeing the processor’s pins to then send or receive data. Without the D_LATCH, we would have needed twice as many pins on the CPU, making it larger and much more expensive.

Building the D_LATCH on digisim.io

Theory is essential, but intuition comes from wiring it up. The build below uses two AND gates, two NOR gates, and a NOT gate.

Step-by-Step Construction

1. Place the Gates: Drag two AND gates, two NOR gates, and one NOT gate onto the canvas.
2. Setup Inputs: Add two INPUT_SWITCH components. Label one “Data” and the other “Enable”.
3. The Input Logic:

• Connect “Data” to the top AND gate.
• Connect “Data” to the NOT gate, then connect the NOT output to the bottom AND gate.
• Connect “Enable” to the second input of both AND gates.

4. The Memory Core:

• Connect the output of the top AND gate to the input of a NOR gate.
• Connect the output of the bottom AND gate to the input of the second NOR gate.
• The Cross-Couple: This is the magic part. Connect the output of the top NOR gate to the input of the bottom NOR gate. Connect the output of the bottom NOR gate back to the input of the top NOR gate.

5. Output: Connect an OUTPUT_LIGHT to the output of the bottom NOR gate. This is your Q.

The SimCast Experience

The SimCast feature in digisim.io plays signal propagation in slow motion. Watch the “Enable” signal act as a gatekeeper: a HIGH on Data reaches the input AND gates but stops there until Enable also goes HIGH.

Related Topics in the Curriculum

As you continue exploring digital logic on digisim.io, these related topics will deepen your understanding:

The D_LATCH is a pivotal point in our structured learning path on digisim.io. It marks the transition from “what is happening now” to “what happened before.”

• The SR latch — the foundation and the forbidden state problem.
• The D_LATCH (this article) — level-sensitive memory.
• The D flip-flop — moving from level-sensitivity to edge-triggering.
• SISO, SIPO, PISO, and PIPO shift-register modes — composing one-bit storage into multi-bit data movement.
• Setup, hold, and metastability — the timing constraints behind every latched circuit.

Final Thoughts: The First Step to Memory

The D latch turns bistable feedback into controlled, level-sensitive storage. It prevents the normal D input from requesting set and reset simultaneously, while transparency and closing-edge timing remain central design concerns.
